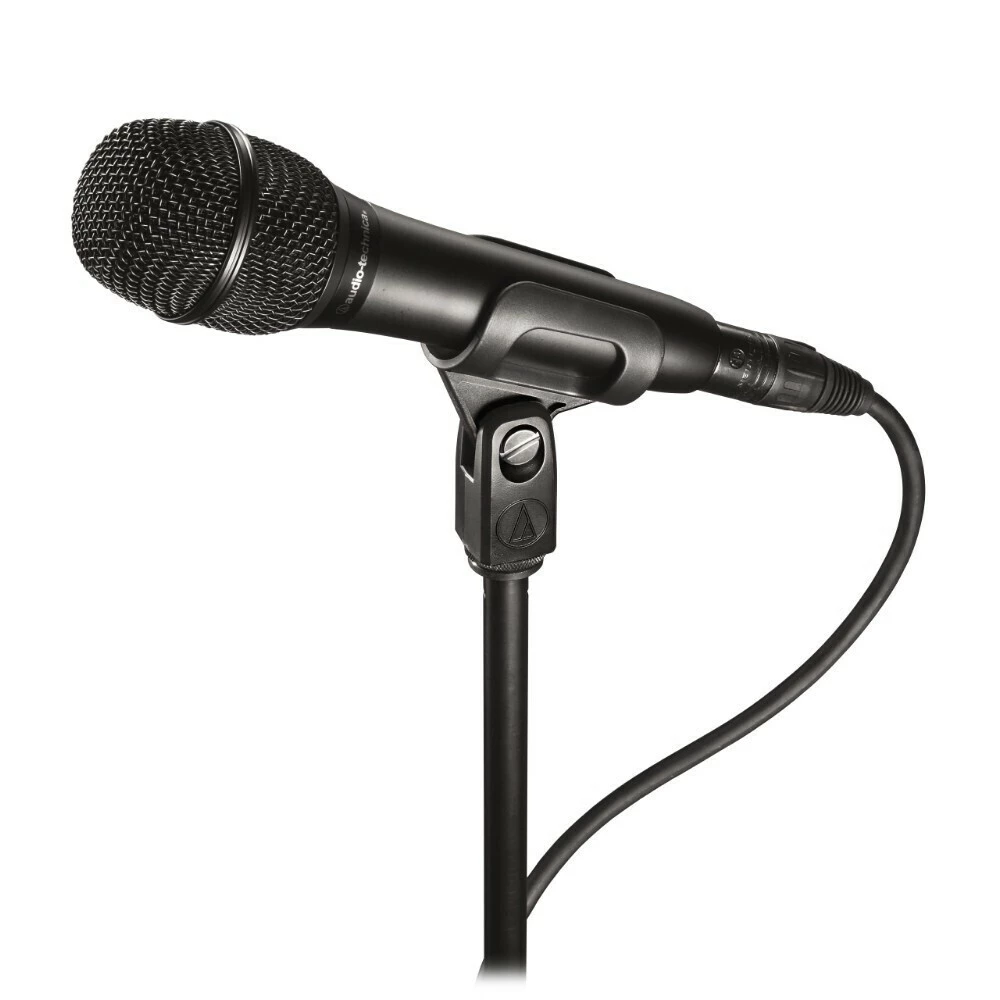

The new AT2010 is designed to bring the studio-quality articulation and intelligibility of Audio-Technicas renowned 20 Series to the stage, for crystal-clear vocal performances. Featuring the same 16 mm low-mass diaphragm found in the critically acclaimed AT2020 side-address studio condenser, the AT2010 excels wherever articulate vocals are needed: in houses of worship, for solo performances, jazz vocalists, singer/songwriters, and more.
- – Extended frequency response and superior transient response for smooth, natural sonic characteristics High SPL-handling and wide dynamic range provide unmatched versatility Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity Corrosion-resistant contacts from gold-plated XLRM-type connector Rugged, all-metal and construction for years of trouble-free service Quiet-Flex stand clamp provides silent, flexible microphone positioning
SPECIFICATIONS |
|
| ELEMENT | Fixed-charge back plate permanently polarized condenser |
|
|
|
| POLAR PATTERN | Cardioid |
|
|
|
| FREQUENCY RESPONSE | 40-20,000 Hz |
|
|
|
| OPEN CIRCUIT SENSITIVITY | 48 dB (3.9 mV) re 1V at Pa |
|
|
|
| IMPEDANCE | 100 ohms |
|
|
|
| MAXIMUM INPUT SOUND LEVEL | 136 dB SPL, kHz at 1% T.H.D. |
|
|
|
| DYNAMIC RANGE (typical) | 113 dB, kHz at Max SPL |
|
|
|
| SIGNAL-TO-NOISE RATIO | 71 dB, kHz at Pa |
|
|
|
| PHANTOM POWER REQUIREMENTS | 48V DC, mA typical |
|
|
|
| WEIGHT | 233 (8.2 oz) |
|
|
|
| DIMENSIONS | 179.1 mm (7.05″) long, 50.8 mm (2.00″) maximum body diameter |
|
|
|
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
|
|
|
| ACCESSORIES FURNISHED | AT8470 Quiet-Flex stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch |
|
|
|
