Record Clean and Clear Audio Anywhere

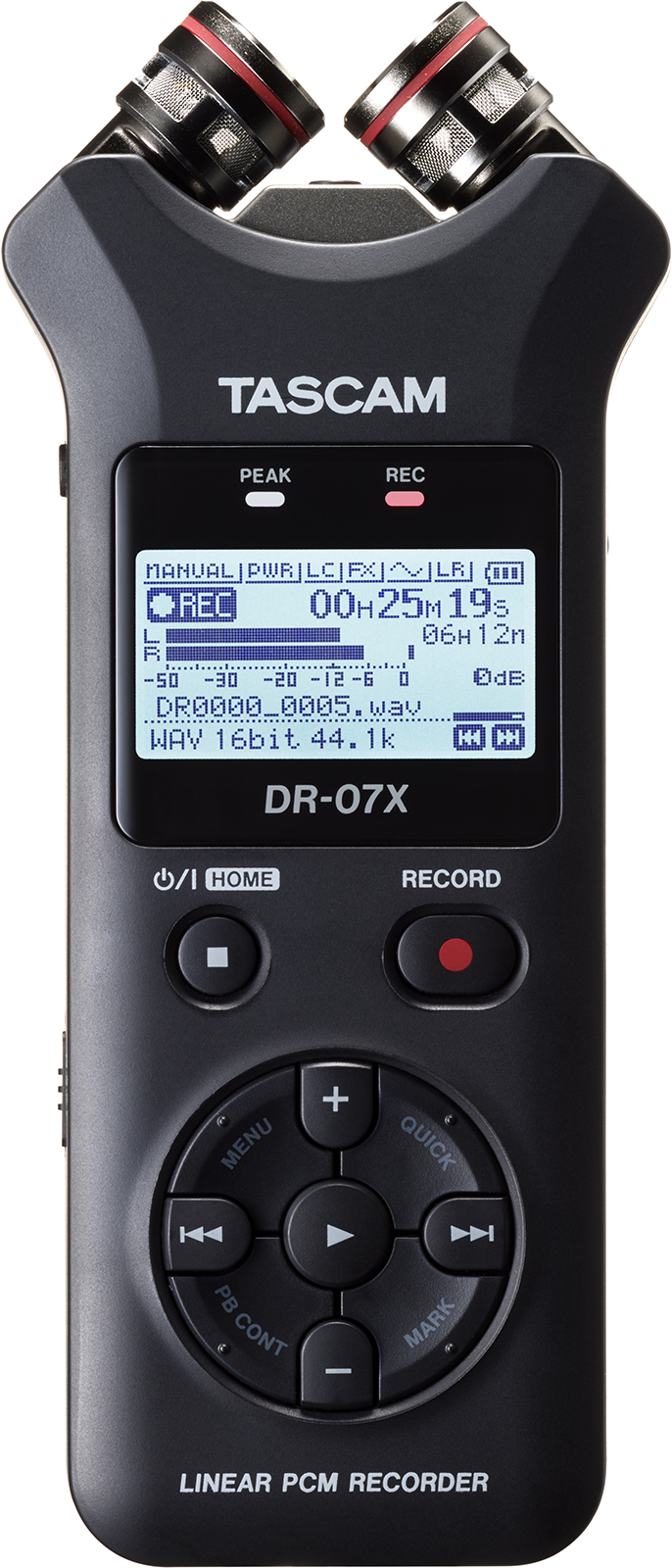

The TASCAM DR-07X allows high-quality recording utilizing an easy-to-use interface and is portable, powerful, and a true value. Dual internal condenser microphones can handle anything from subtle to loud to 125dB SPL, with sensitivity to capture every detail.
Simple to Operate
The layout of the DR-07X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting takes, and adding markers are all a button press away.
TASCAM DR-07X uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries. TASCAM DR-07x can also be powered by a USB mobile battery as well for super long extended use.
Adjustable Microphone for Preferred Stereo Image

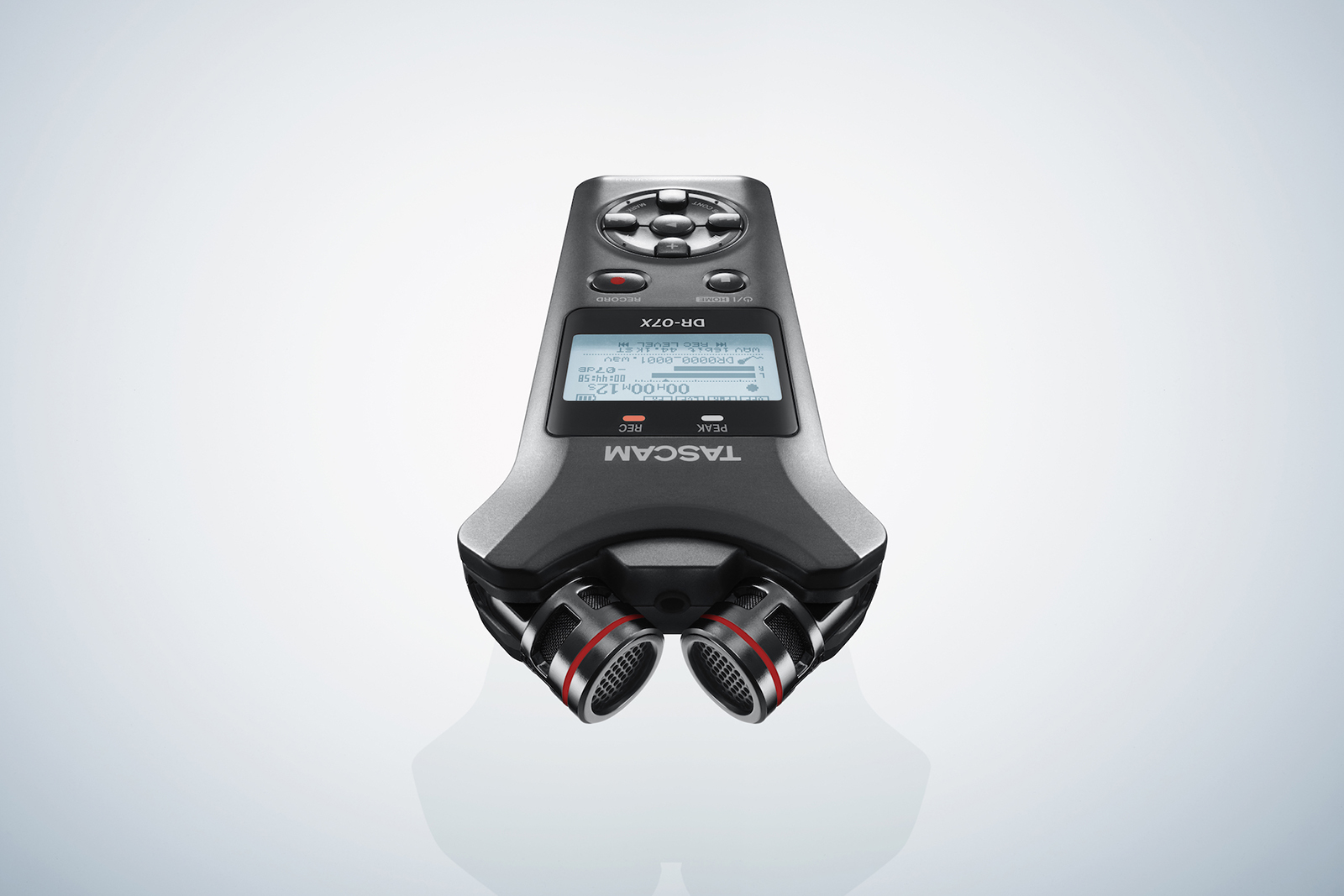

DR-07X is equipped with adjustable unidirectional microphones that can be used for recording in both the A-B position and X-Y position. Advanced microphone placing allows for a wide stereo sound recording or a clear stereo sound recording with less phase difference, making it possible to achieve professional quality recordings.
A-B and X-Y Stereo
A-B configuration captures a wider audio space for more room, while X-Y focuses on the sweet spot for a tighter audio field.
Turning Your Room into a Studio – in a Minute
Connect to a PC using USB Audio interface mode, and DR-07X becomes a tool for voiceover work, live streaming, podcasting and songwriting with studio-quality audio.
Built-in microphones work as USB microphones without complicated driver installs.
Back up Your Transcription Work: Record and Play With One Unit
Writing down what you hear – Easier said than done, but it is actually easy with DR-07X. In addition to its capability to capture crisp voice recording, DR-07X can help you with its Jump back function, variable Speed function and equalizer preset for human voice.
Features at a Glance
- High-quality unidirectional stereo condenser microphones that can record in both A-B and X-Y positions according to the situation
- Support multiple languages for menu (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
- Overwrite function for Punch-In recording with one level of Undo
- Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
- Dictation mode designed for human voice recording and transcription
- Reverb effect for vocal and instrument resonance
- Auto recording function that can detect the sound input signal level and automatically start recording
- Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
- Peak reduction function
- Self timer recording function
- Seamless gain control
- Three low cut filter levels (40/80/120Hz)
- Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
- Level align feature that prevents uneven volume levels
- Equalizer setting for adjusting playback sound quality
- Divide/delete functions
- Loop/repeat playback function
- Resume function that retains the last stop position and starts playback from that position when power is turned back ON
- Jump back and play (1 to 10 sec in 1 sec increments, 10 sec, 20 sec, 30 sec)
- QUICK menu button for easy access to various functions
- High-quality 96kHz/24-bit WAV/BWF linear PCM recording and long recordings as MP3 files possible
- microSD/microSDHC/microSDXC (up to 128GB) cards can be used as recording media
- Mark function that can set up to 99 points for a single track Mark information can be utilized by BWF compatible software
- Audio files created on computers can be played (Only in formats compatible with this product)
- Built-in monaural speaker with an output of 0.3W
- Pre-recording buffer that can record up to 2 seconds prior to starting recording
- When a predetermined maximum file size is reached, a new file is created to continue recording
- Track increment creates new files at arbitrary locations during recording
- File name format can be set to use a user-defined word or the date
- The first six characters of the file name for recording can be set freely
- Playlist function
- A chromatic tuner is equipped which is helpful for practicing musical instruments
- Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
- Stereo mini line output / Headphone output connector
- 128×64 pixel graphic LCD with backlight
- High-speed file transfer to a computer is possible using USB 2.0
- Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P520E)
- Tripod attachment screw-hole built in to the unit
Spec Description
| Recording Media | microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB) |
| File System | FAT16/32, exFAT |
| Recording File Format | |
| WAV / BWF | |
| Sampling Frequency | 44.1k / 48k / 96k Hz |
| Bit-depth | 16 / 24-bit |
| MP3 | |
| Sampling Frequency | 44.1k / 48k Hz |
| Bit-rate for recording | 32k / 64k / 96k / 128k / 192k / 256k / 320k bps |
| Playback Bit-rate | 32k to 320k bps, VBR, ID3TAG Ver. 2.4 |
| Number of Channels | 2-channel (Stereo) / 1-channel (Mono) |
| Playback speed control | 0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only |
| Built-in Microphone | Unidirectional, Stereo (switchable between A-B and X-Y positions) |
| MIC/EXT IN | |
| Connector | 1/8″ (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power) |
| Nominal Input Level | -20dBV |
| Maximum Input Level | -4dBV |
| Input Impedance | 18kΩ or more (PLUG IN PWR: OFF) 2kΩ or more (PLUG IN PWR: ON) |
| PHONES/LINE OUT | |
| Connector | 1/8″ (3.5mm) Stereo Mini jack (Unbalanced) |
| for LINE connection | |
| Nominal Output Level | -14dBV (10kΩ load) |
| Maximum Output Level | +2dBV (10kΩ load) |
| Output Impedance | 12Ω |
| for Headphones connection | |
| Maximum Output Power | 20mW + 20mW (32Ω load) |
| USB | |
| Connector | USB Micro B-type |
| Standard | USB2.0 HIGH SPEED |
| Features | Mass Storage Class Audio Interface (44.1kHz, 48kHz) |
| Built-in Speaker | 0.3W, Mono |
| Low-cut Filter | 40 / 80 / 120Hz |
| Chromatic Tuner | C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments) |
| Effector | 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2) |
| Tripod attachment screw-hole | 1/4″ Tripod attachment screw-hole |
| Power | 2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter) |
| Power Consumption | 1.7 W (Max) |
| Battery Operation Time (Recording) |
|
| Alkaline (EVOLTA) | approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA) |
| Ni-MH (eneloop) | approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA) |
| Dimensions (W×H×D) | 2.67″ × 6.22″ × 1.02″ / 68 × 158 × 26 mm |
| Weight | 4.5 oz. / 127 g |
Audio Performance
| Frequency Response | |
| Fs 44.1kHz | 20Hz to 20kHz, +0/-1dB (EXT IN to LINE OUT, JEITA) |
| Fs 48kHz | 20Hz to 22kHz, +0/-1dB (EXT IN to LINE OUT, JEITA) |
| Fs 96kHz | 20Hz to 40kHz, +0/-1.5dB (EXT IN to LINE OUT, JEITA) |
| Total Harmonic Distortion | 0.01% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA) |
| Signal-to-Noise Ratio | 94 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA) |
Computer System Requirements
Windows
| Compatible computers | Windows computer with a USB 2.0 (or higher) |
Mac
| Compatible computers | Mac with a USB 2.0 (or higher) |
* Verified with Intel and Apple Silicon (M1 and M2) hardware
Information
| Latest version info | |
| Firmware | V1.16 |
| ASIO Driver for Windows | V1.00 |
- Operation stability when adjusting the playback speed (VSA) for MP3 files has been improved.
