REAN NYS231BG 3.5MM TRS Plug Black/Gold connector

REAN NYS231BG 3.5MM TRS Plug Black/Gold connector

Brand: Rean, Rean by Neutrik

Original price was: $2.95.Current price is: $1.95.

Upgrade to Rean Connector – Single Cable Or Two Lightweight Cables Only

SKU: NYS231BG Categories: CONNECTORS, REPLACEMENT PARTS, SOUND PROFESSIONALS Brand: Rean, Rean by Neutrik

NYS231BG – Overview

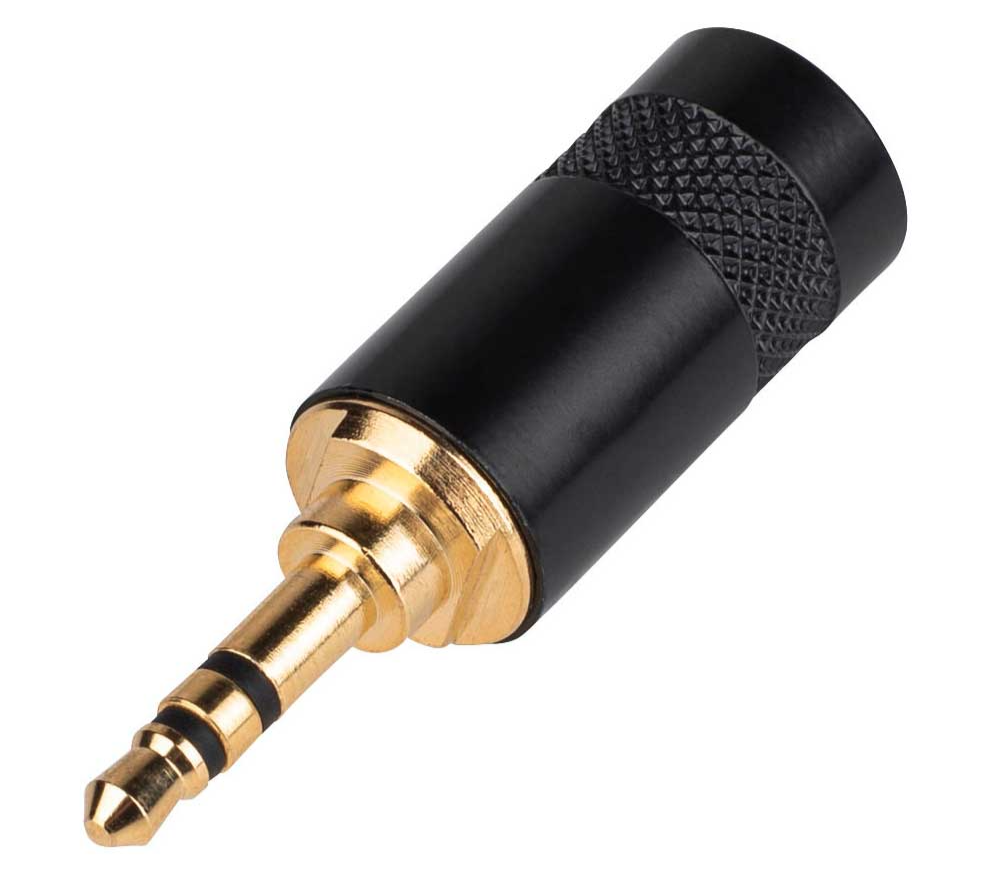

The Rean NYS231BG is a 3.5mm 3-Pole Plug that features Gold Plated Contacts & a Black Metal Handle.

Specifications:
- Electrical
- Contact Resistance: ≤ 10 mΩ
- Insulation Resistance: ≥ 200 MO(Initial)
- Dielectric Strength 0.5 KVdc 50HZ
  Mechanical
- Lifetime: > 5,000 Mating Cycles
- Insertion and Withdrawal Force: 5 – 40 N
- Cable O.D.:
  – max 4.5 mm for standard outlet
  – max 6.4 mm for large outlet (* L)
  – max 8.5 mm for large outlet (* LL)

  Material
- Plug Finger: Brass
- Sleeve: Zinc
- Retainer Ring: PA66+30%GF
- Soldering Contact: Phosphor Bronze
- Cable Clamp: Steel
- Insulation: PP
- Housing: Zinc
- Plug Finger Plating: Nickel
- Sleeve Plating: Nickel
- Soldering Contact Plating: Tin
- Cable Clamp Plating: Tin
- Housing Plating: Nickel

Weight	0.1 lbs
