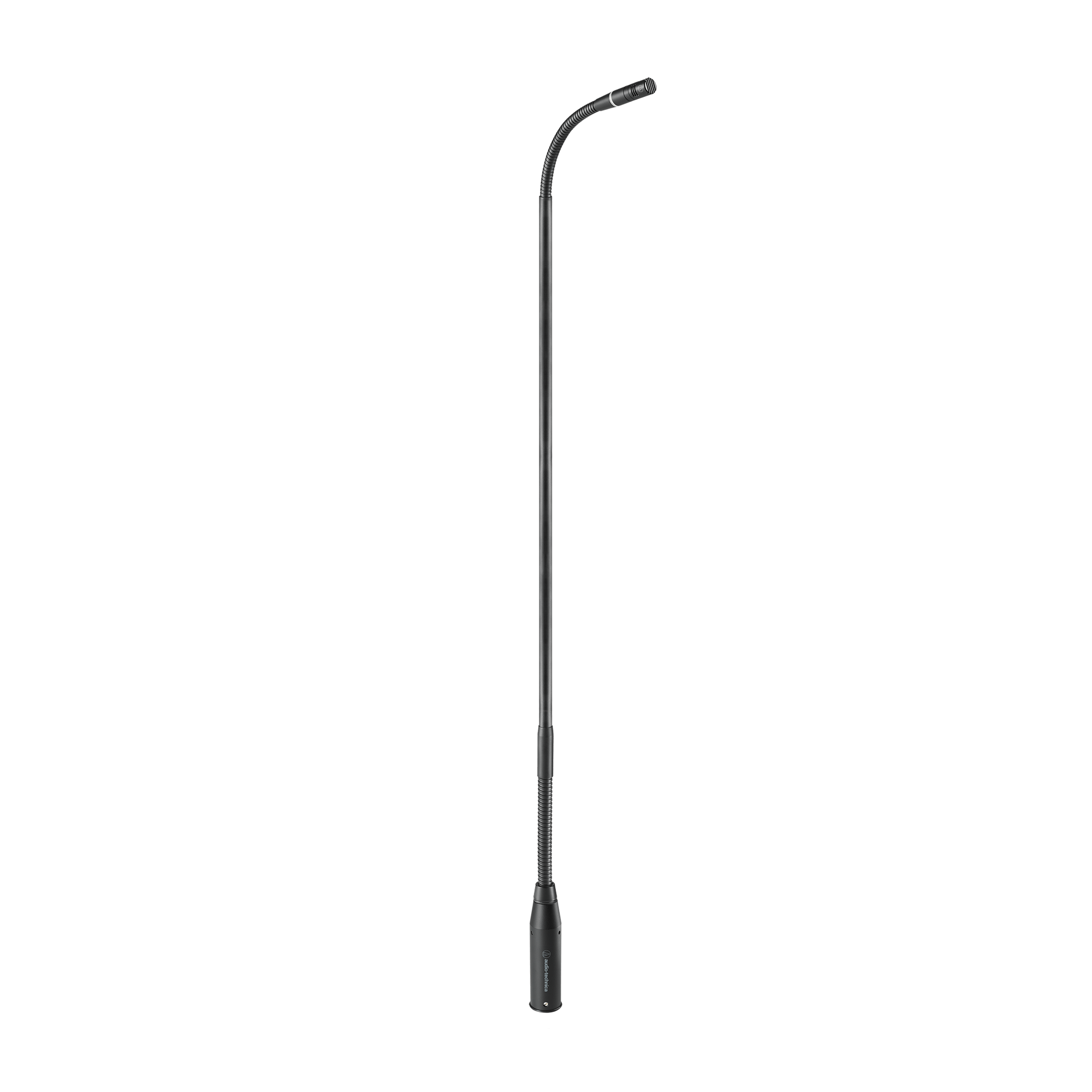

The ES925/XLR is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a condenser microphone element, gooseneck, and an XLR power module.
Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85″, 9.08″, 12.08″, 15.08″, 18.08″, 21.08″), and microphone polar patterns (MicroLine®, hypercardioid, cardioid, omnidirectional).
This Product is TAA-Compliant Learn More About TAA-Compliance
- Modular microphone system includes a microphone element, gooseneck and power module –each interchangeable with components from other ES Modular Microphones
- Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
- Power module plugs into any standard XLRF-type connector or mounts to 5/8″-27 stands using included quick-mount stand adapter
- Available interchangeable elements permit angle of acceptance from 90° to 360°
- Designed for professional sound reinforcement and other commercial sound applications
- Interchangeable condenser microphone elements provide full-range, natural sound
- Included low-profile universal isolation mount attenuates noise, shock and vibration
- Small-diameter gooseneck design permits highly flexible positioning
- Superior off-axis rejection for maximum gain before feedback
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Includes foam windscreen
- Available in six lengths
Specifications
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 30-20,000 Hz |
| Open Circuit Sensitivity | -40 dB (10.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 140 dB SPL |
| Dynamic Range | 112 dB |
| Signal-to-Noise Ratio | 66 dB |
| Phantom Power Requirements | 11-52V DC |
| Switches | LED Color |
| Current Consumption | 6.7 mA |
| Weight | ES925C6/XLR: 102.0 g (3.6 oz) ES925C12/XLR: 126.0 g (4.5 oz) ES925C15/XLR: 131.0 g (4.6 oz) ES925C18/XLR: 136.0 g (4.8 oz) ES925C21/XLR: 141.0 g (5.0 oz) ES925C24/XLR: 146.0 g (5.2 oz) |
| Dimensions | ES925C6/XLR: 20.2 mm (0.80″) diameter, 197.4 mm (7.77″) height ES925C12/XLR: 20.2 mm (0.80″) diameter, 304.8 mm (12.00″) height ES925C15/XLR: 20.2 mm (0.80″) diameter, 381.0 mm (15.00″) height ES925C18/XLR: 20.2 mm (0.80″) diameter, 457.2 mm (18 |
| Output Connector | Integral 3-pin XLRM-type |
| Optional Interchangeable Elements | ESE-Ca cardioid (120°) ESE-Ha hypercardioid (100°) ESE-MLa MicroLine® (90°) ESE-Oa omnidirectional (360°) |
| Accessories Included | AT8109a foam windscreen; AT8474 universal isolation mount; AT8473 quick mount stand adapter; 5/8″-17 to 3/8″-16 threaded adapter; set screw (M2 x 2); hex wrench |
| Audio-Technica Case Style | M43 |
